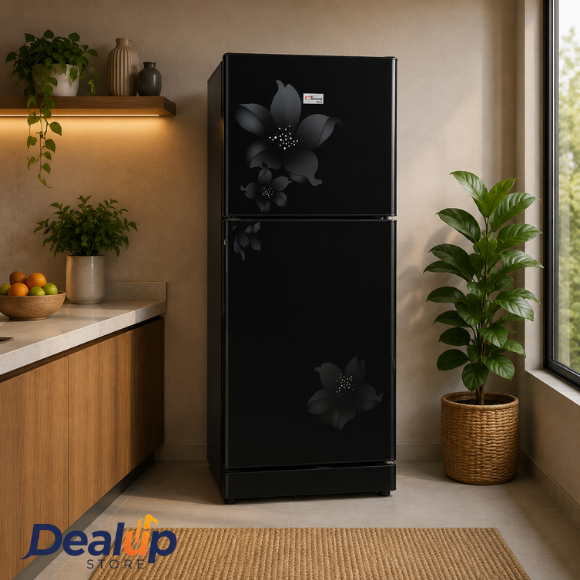

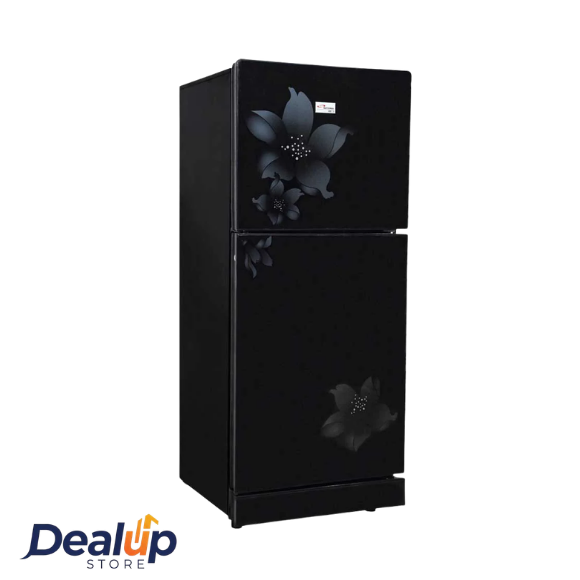

Gaba National Glass Double Door Refrigerator GNR-1715 G.D (A)

Engineering Specification (ES): Gaba National GNR-1715 G.D (A)

1. Product Classification & Architecture

• • Product Type: Free-standing, Double-Door Domestic Refrigerator-Freezer.
  • Architecture: Top-Mount Freezer (TMF) configuration with a bottom refrigerator compartment.
  • Variant Identifier “(A)”: Denotes the specialized Energy-Saving/A-Grade series configuration.
  • Climate Class: Subtropical (ST) to Tropical (T), optimized for ambient operational environments up to 43°C.

2. Mechanical Dimensions & Volumetric Capacities

• • Total Gross Volume: ~425 Litres (Equivalent to 15–17 Cubic Feet structural volume class).
  • Height: 1240 mm
  • Width: 550 mm
  • Depth: 540 mm
  • Exterior Finish: Tempered, impact-resistant Glass Door (G.D) facade with integrated scratch protection.

3. Thermodynamic & Refrigeration Loop Specifications

• • Compressor Core: High-efficiency, imported heavy-duty compressor core
  • Internal Tubing Matrix: 100% pure copper capillary and evaporator loop plumbing. Ensures thermal conductivity and corrosion resistance.
  • Cooling Topology: Direct Cool (Static cooling system with manual defrost cycling).
  • Eco-Friendly Refrigerant: Low Global Warming Potential (GWP) hydrofluorocarbon/hydrocarbon blend.

4. Electrical & Control Systems

• • Operating Voltage: 220V – 240V AC at standard 50Hz single-phase frequency.
  • Temperature Regulation: Analog mechanical thermostat dial for user-defined duty cycle adjustment.
  • Internal Illumination: Low-voltage, low-thermal-emission LED array located in the refrigerator section
  • Acoustic Signature: Silent-running optimization, targeting low decibel levels to limit ambient noise

5. Compartment Ergonomics & Storage Architecture

5.1 Freezer Compartment (Upper)

• • Dividers: Wire or tempered glass shelf dividing the compartment into dual freezing zones.
  • Door Utility: Integrated door racks for frozen item indexing.

5.2 Refrigerator Compartment (Lower)

• Shelving: Adjustable, heavy-duty shelving units built to support high-density cookware.
• Humidity Control Zone: Double Crisper Box modules. Engineered with semi-sealed airflow to maximize fruit and vegetable moisture retention.
• Door Liner: Multi-tier door balconies, including dedicated high-clearance bottle racks and egg trays.
